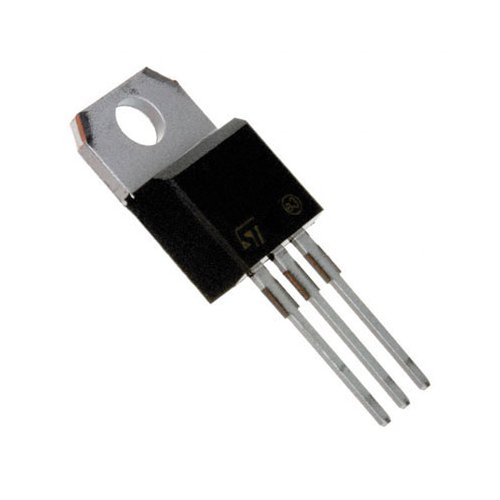

The standard TN16 / TYNx16 16 A SCRs series is suitable for general purpose applications. Using clip assembly technology, they provide a superior performance in surge current capabilities.
Features of TYN616 SCR
IT(RMS) =16 A
VDRM/VRRM = 600 to 1000 V
IGT = 25 mA
IT(RMS) RMS on-state current (180 °Conduction angle) Tc = 110 °C 16 A
IT(AV) Average on-state current (180 °Conduction angle) Tc = 110 °C 10 A
VRGM Maximum peak reverse gate voltage 5 V
Vt0 Threshold voltage Tj = 125 °C MAX. 0.77 V
Rd Dynamic resistance Tj = 125 °C MAX. 23 m Ω
