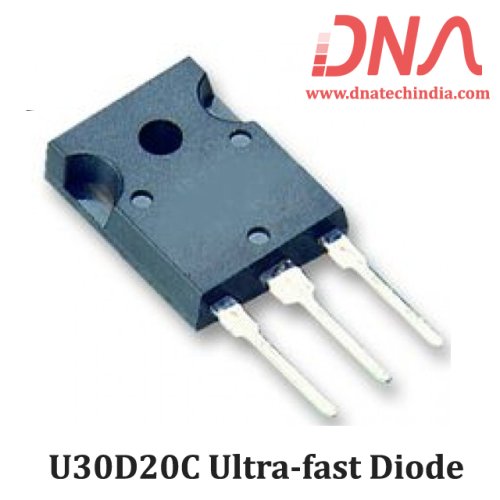

U30D20C Ultra-fast Diode

U30D20C is a 30 Ampere dual common cathode ultra fast recovery rectifiers.

We have Various sizes of Diode. Check out our complete collection of Diode.

Features of U30D20C Diode

• Dual rectifier construction, positive center-tap

• Plastic package has Underwriters Laboratory Flammability Classification 94V0

• Glass passivated chip junctions

• Superfast recovery time, high voltage

• Low forward voltage, high current capability

• Low thermal resistance

• Low power loss, high efficiency

• High temperature soldering guaranteed : 260oC, 0.16”(4.06mm)from case for 10 seconds

• No. of Pins : 3 Pin

• Diode Case Style : TO-247

• Operating Temperature Max : 150°C

• Forward Current If(AV) : 15A

• Forward Surge Current Ifsm Max : 300A

• Diode Configuration : Dual Common Cathode

• Reverse Recovery Time trr Max : 35ns

• Repetitive Reverse Voltage Vrrm Max : 200V

• Forward Voltage VF Max : 975mV
