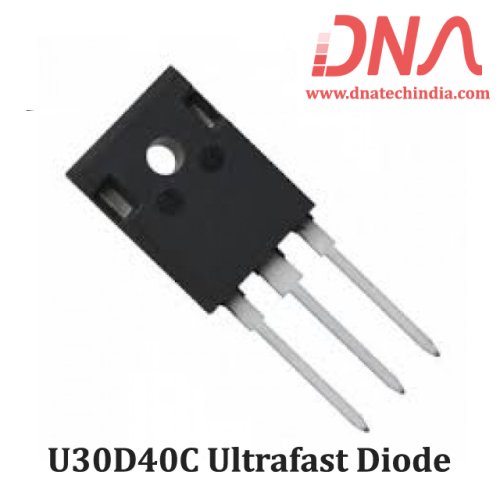

U30D40C Ultrafast Diode

U30D40C Ultrafast Diode

We have Various sizes of Diode. Check out our complete collection of Diode.

Features of U30D40C Diode

• Glass Passivated Die Construction

• Super-Fast Switching

• Low Forward Voltage Drop

• Low Reverse Leakage Current

• High Surge Current Capability

• Plastic Material has UL Flammability

• Classification 94V-O

• Case : TO-3P, Molded Plastic

• Terminals : Plated Leads Solderable per MIL-STD-750, Method 2026

• Weight : 5.6 grams (approx.)

• Mounting Position : Any

• Mounting Torque : 11.5 cm-kg (10 in-lbs) Max.

• Operating Temperature Max : 150°C

• Forward Current If(AV) : 30A

• Forward Surge Current Ifsm Max : 300A

• Diode Configuration : Dual Common Cathode

• Reverse Recovery Time trr Max : 50ns

• Repetitive Reverse Voltage Vrrm Max : 400V

• Forward Voltage VF Max : 1.3V
