U30D60C Ultra Fast Recovery Rectifier

U30D60C is the 30.0 Ampere Dual Common Cathode Ultra Fast Recovery Rectifiers. Designed for use in SMPS and as free wheeling Diodes.

Features of U30D60C

• Dual rectifier construction, positive center-tap

• Plastic package has Underwriters Laboratory

• Flammability Classification 94V0

• Glass passivated chip junctions

• Superfast recovery time, high voltage

• Low forward voltage, high current capability

• Low thermal resistance

• Low power loss, high efficiency

• High temperature soldering guaranteed:

• 2 60oC, 0.16”(4.06mm)from case for 10 seconds

Mechanical Data of U30D60C

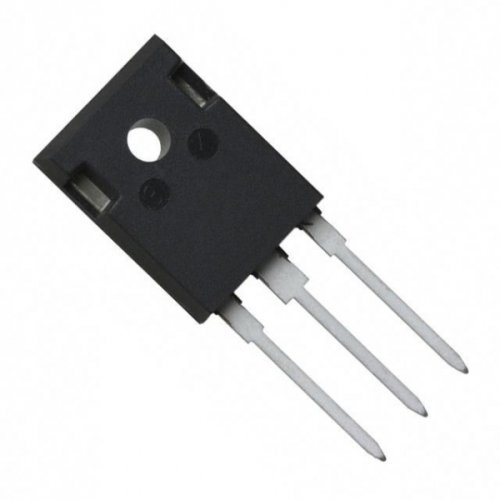

• Cases : TO-3P/TO-247AD molded plastic

• Terminals : Pure tin plated, lead free solderable per

• MIL-STD-750. Method 2026

• Polarity : As marked

• Mounting position : Any

• Mounting torque : 10in-lbs. Max.

• Weight : 0.2 ounce, 5.6 gram approximately
