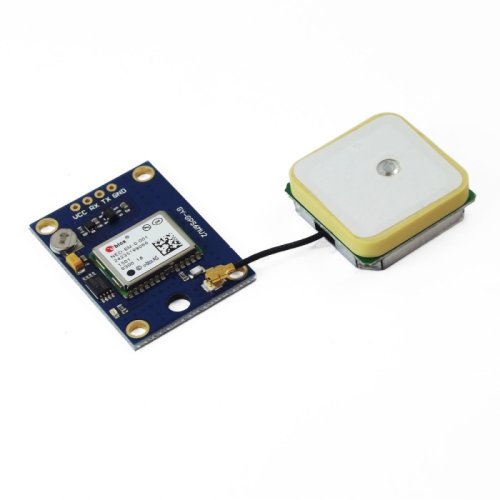

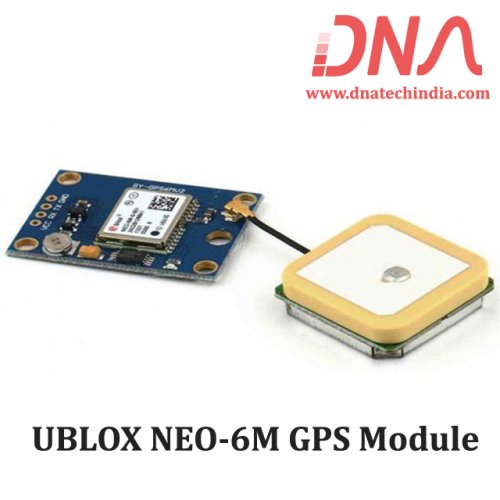

The UBLOX NEO-6M GPS engine on this board is a quite good one, with high precision binary output.
It has also high sensitivity for indoor applications.UBLOX NEO-6M GPS MODULE has a battery for power backup and EEPROM for storing configuration settings.

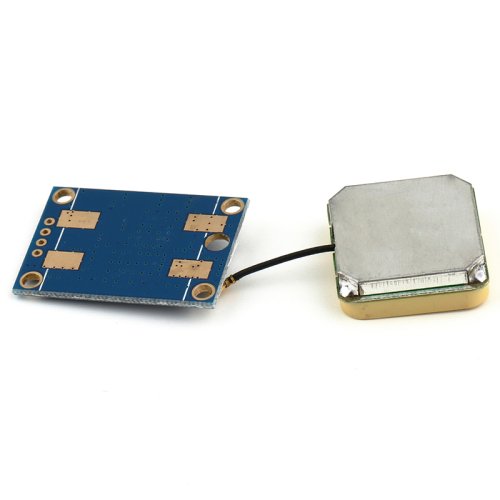

The antenna is connected to module through ufl cable which allow for flexibility in mounting the gps such that the antenna will always see the sky for best performance. This makes it powerful to use with cars and other mobile applications.
The Ublox gps module has serial TTL output, it has four pins: TX, RX, VCC and GND. You can download the u-center software for configuring the gps and changing the settings and much more. It is really good software.
We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
5Hz position update rate
Operating temperature range : -40 TO 85°C UART TTL socket
EEPROM to save configuration settings
Rechargeable battery for Backup
Cold start time of 38 s and Hot start time of 1 s
Supply voltage : 3.3 V t
Configurable from 4800 Baud to 115200 Baud rates. (default 9600)
Super Sense ® Indoor GPS : -162 dBm tracking sensitivity.
