VFC110AP HIGH FREQUENCY VOLTAGE TO FREQUENCY CONVERTER IC

Name: VFC110AP HIGH-FREQUENCY VOLTAGE-TO-FREQUENCY CONVERTER IC
Brand: Generic
SKU: DAG822
Price: 1150.00 INR
Availability: OutOfStock

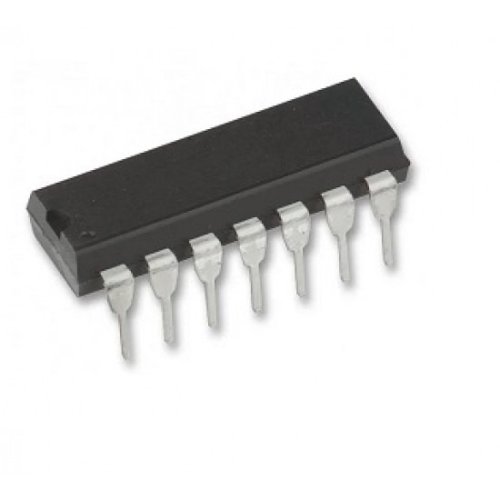

VFC110AP 4MHz HIGH-FREQUENCY VOLTAGE-TO-FREQUENCY CONVERTER IC Dip-14

The VFC110AP is a precision voltage-to-frequency converter that converts an analog voltage input into a frequency output, offering high linearity and wide frequency range operation. It is commonly used in data acquisition systems, instrumentation, and control systems where signal integrity, high speed, and accuracy are critical. The IC offers excellent noise immunity, making it suitable for applications in noisy environments or over long transmission distances. It can also operate in a frequency-to-voltage mode, adding flexibility to its application.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of VFC110AP HIGH-FREQUENCY VOLTAGE-TO-FREQUENCY CONVERTER IC

High Conversion Accuracy: Provides high linearity with typically ±0.01% nonlinearity error.

Wide Frequency Range: Capable of generating frequencies from 0 Hz to 4 MHz, making it suitable for high-speed applications.

Low Temperature Drift: Minimal temperature dependence, with a temperature coefficient of ±50 ppm/°C for frequency stability over temperature variations.

High Input Impedance: Input impedance is greater than 100 MΩ, ensuring minimal loading on the signal source.

Wide Input Voltage Range: Supports a wide range of input voltages, making it compatible with various signal levels.

Single or Dual Power Supply Operation: Can operate with a single +15V supply or dual ±15V supply, providing flexibility in power configurations.

Specifications of VFC110AP HIGH-FREQUENCY VOLTAGE-TO-FREQUENCY CONVERTER IC

Frequency Range: 0 Hz to 4 MHz.

Nonlinearity Error: ±0.01% typical.

Temperature Coefficient: ±50 ppm/°C (frequency stability over temperature).

Power Dissipation: 175 m W typical at ±15V.

Input Impedance: Greater than 100 MΩ.

Output Format: Square wave output, TTL/CMOS compatible.

Operating Temperature Range: 0°C to +70°C for commercial applications.

Package Includes

1 x VFC110AP HIGH-FREQUENCY VOLTAGE-TO-FREQUENCY CONVERTER IC
