A NTC thermister is used for temperature sensing and has a accuracy of 0.1 C.

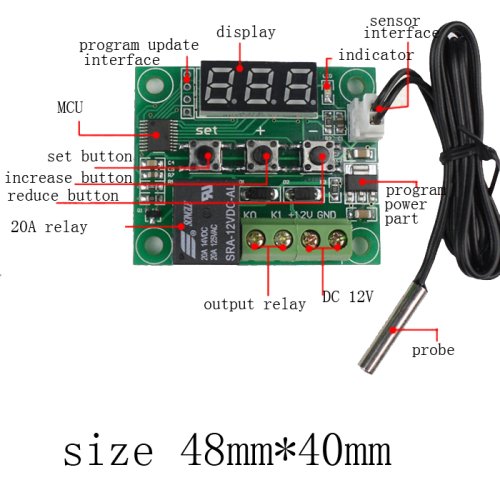

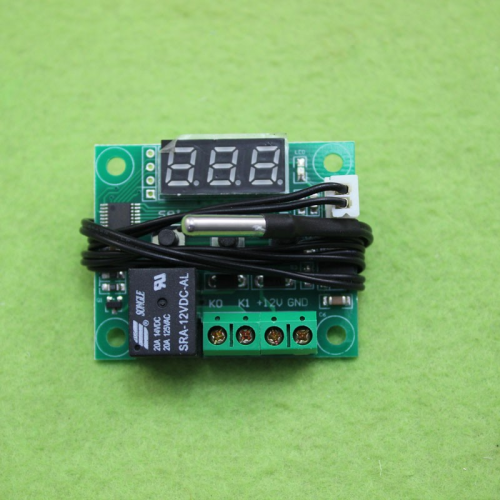

W1209 Mini thermostat Temperature controller is low cost 12 volt Temperature controller with 7-segment display and 3 switch keypad for setting temperature and other parameters.
For calibration and Settings for W1209 Temperature Controller Check below Video
Supply voltage : DC 12V
Static current : ≤35MA, attract current ≤65MA
Output voltage : DC 12V
Output power : 10A relay
Measurement input : NTC (10K 0.5%) Waterproof Sensor
Environmental requirements : -10 ~ 60°C, Humidity 20% ~ 85%
Dimensions : 48 x 40mm
Cable length : About 52 cm
Temperature control mode : ON / OFF
Temperature range : -50 ~ +110°C
Control accuracy : 0.1°C
Hysteresis accuracy : 0.1°C
Refresh rate : 0.5S
High temperature protection : 0 ~ 110°C
Resolution : When temperature is 0.1°C, the resolution is -9.9~99.9, other temperature segment is 1°C
