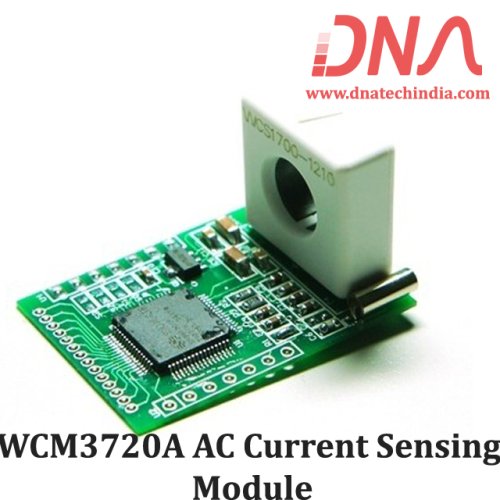

The Winson WCM3720A current Sensor Module provides economical and precise solution for AC current sensing in industrial, commercial and communications systems. The unique package allows for easy implementation without breaking original system and make current sensing possible. Typical applications include load detection and management, over-current fault detection and any intelligent power management system etc…
The WCM3720A module consists of a current sensor and a very high accuracy Analog to Digital converter, power on/off switch, digital signal of current and a setting current over control output and an internal regulator for sensor. The WCM3720A includes a current sensor with a diameter 9mm hole, users can just use system’s own electric wire by pass it through this hole to measure passing current without breaking original system, user’s MCU can get the real data from DATA pin.
We have Various sizes of Modules. Check out our complete collection of Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Operating Voltage: 4.0 V ~12.0 V for Vcc
Isolation Voltage 4KV
Digital current data output, easy interface with MCU (UART communication)
Baud Rate: 2.4K bps
Internal regulated voltage for sensor
Measurement range: 0A – 20A
Built-in LCD driver
Resolution: I < 10A: 1 mA I ≧ 10A: 10 mA
Accuracy (0A ～ 20A): 80mA ~ ± 5%
Can setting 1~15A over-current protection control
Calibrated by 5V,could customize different voltage calibration
Provide 3.3V operating module
AC Current meter
Current Protector
