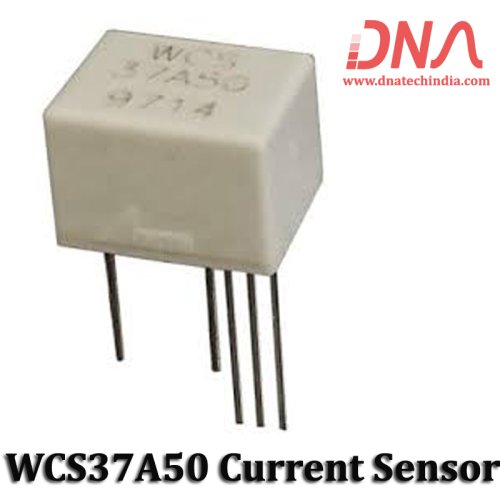

WCS37A50 Hall Effect Current Sensor

WCS37A50 - Hall Effect Current Sensor for AC and DC sensing, features 1.5 Ω internal resistance and high sensitivity of 3.5 mV/mA.

The WCS37A50 Hall Effect Current Sensor offers an economical solution for precise DC and AC current sensing in various applications. Its unique design allows for easy integration, making it ideal for motor control, load detection, and intelligent power management systems. The sensor's low-temperature drift and temperature compensation circuit enhance reliability.

With a typical internal conductor resistance of only 1.5 Ω, the WCS37A50 Hall Effect Current Sensor minimizes power loss and operating temperature. This feature ensures efficient performance and longevity. The sensor converts the magnetic field generated by the applied current into a proportional voltage, providing accurate readings while maintaining electrical isolation without the need for costly isolation techniques.

In addition, the WCS37A50 is equipped with a wide operating voltage range of 3.0 to 12 V and a low operating current of just 3 mA. Its high sensitivity of 3.5 mV/mA and nearly zero magnetic hysteresis make it a dependable choice for various industrial and commercial systems.

Explore the reliability of the WCS37A50 Hall Effect Current Sensor at DNA. This current sensor is perfect for various applications. Check other "Current and Voltage Sensor" that we have in stock.

At DNA, we cater to the needs of Indian electronics buyers. If you can't find specific parts, we can import them for you. We support retail and bulk orders. Explore related items like Crystal, Sensor Module, DC to DC Converter IC, Transistor, Inductor, and MOSFET. Contact Us.

Features of WCS37A50 Hall Effect Current Sensor

• Low noise analog signal path
• 1.5 Ω internal conductor resistance
• Output voltage proportional to AC and DC current
• Min. sensing current 0 ~ 0.5 A
• High Sensitivity 3.5 mV/mA
• Wide operating voltage range 3.0 ~ 12 V
• Low operating current 3 mA
• Nearly zero magnetic hysteresis
• Ratiometric output from supply voltage

Specification of WCS37A50 Hall Effect Current Sensor

• Min. sensing current 0 ~ 0.5 A
• High Sensitivity 3.5 mV/mA
• 10K Hz bandwidth

Applications of WCS37A50 Hall Effect Current Sensor

• Motor control
• Load detection
• Over-current fault detection
• Intelligent power management systems
• Electrical isolation applications

Related Links for WCS37A50 Hall Effect Current Sensor

• Other Products from Current and Voltage Sensor Category

Package Includes

• 1 X WCS37A50 Hall Effect Current Sensor
