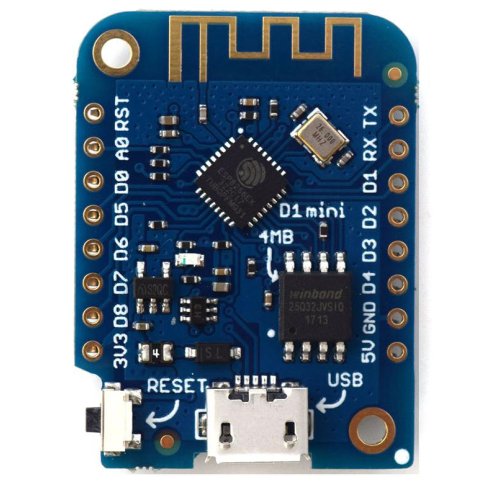

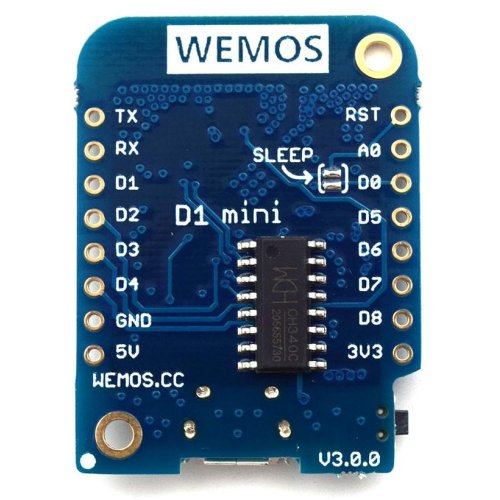

WeMos D1 mini V3.0

ESP8266 Wifi Mini Development Board

WeMos Mini D1 V3.0 WiFi ESP8266 Development board based around the ESP8266EX device this board offers excellent features for projects requiring a small footprint with which is compatible with MicroPython, Arduino, and NodeMcu. With plenty of shields available and a hugh amount of online support with articles, videos, software examples and library files.

Features Of WeMos D1 mini V3.0

• 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)

• 1 analog input(3.2V max input)

• a Micro USB connection

• Compatible with Arduino

• Compatible with nodemcu

• Compatible with MicroPython

Technical specifications Of WeMos D1 mini V3.0

• Microcontroller: ESP-8266EX

• Operating Voltage: 3.3V

• Digital I/O Pins: 11

• Analog Input Pins: 1(Max input: 3.2V)

• Clock Speed : 80MHz/160MHz

• Flash: 4M bytes

• Length: 34.2mm

• Width: 25.6mm

• Weight: 30g
