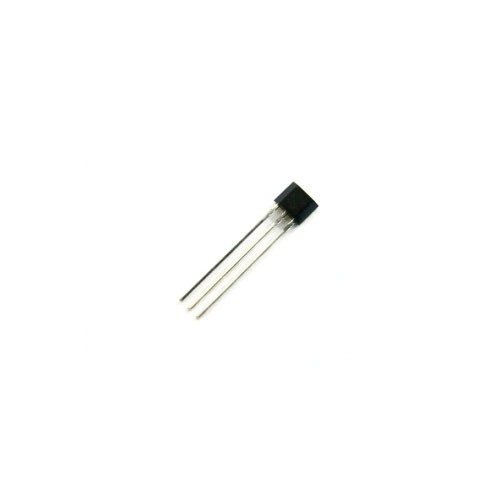

The W135 integrates Hall sensing element, linear amplifer, sensitivity controller and emitter follower output stage.
It accurately tracks extremely small change in magnetic flux density–generally too small to operate Hall effect switch.
W135 Hall Effect Sensor can be applied as current sensor, tooth sensor, proximity detectors and motion detectors. As sensitive monitor of magnetic flux, it can effectively measure a system’s performance with negligible system loading while providing isolation from contaminated and electrically noisy environments.
Wide operating range 3.0~12V, -40℃ ~125℃
Flat Response to 23kHz
Low Null Gauss output drift, typical +-0.3m V/℃
Wide sensible magnetic field range on different supplied voltage
±1,000 Gauss on 5V supplied voltage
±2,500 Gauss on 12V supplied voltage. Low operating current 3mA
Two package styles TO-92S/SOT-23 available.
