X9C104 Digital Potentiometer Module

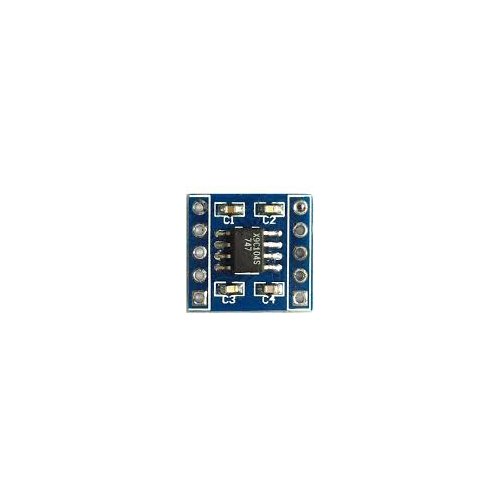

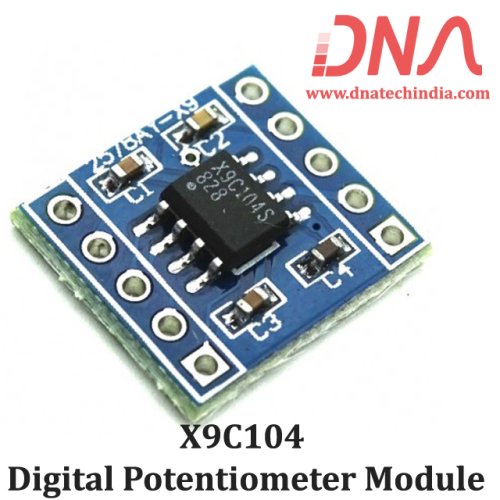

This Module is a breakout board for Intersils X9C104 digitally controlled potentiometer IC.

This module helps you simulate the mechanical control of a potentiometer. The integrated circuit contains 99 series-related resistors. With a microcontroller, you can control the module and select the place where the center pin of the "potentiometer" is connected, anywhere in the 100 points available (at the ends of the group or between the resistors).
The X9C104 digital potentiometer consists of inserting a hundred resistors with a 1K ohm value. With the pins we can select the number of resistors we want, so we can digitally vary the resistance of the potentiometer. The device dissipates a power of 10 mW and supports resistors with a maximum current of 4.4 mA.

This module can be easily interfaced to Arduino, Raspberry Pi or any other Micro-controller as well.

We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules

X9C104 Digital Potentiometer Module Specifications

• Logic supply voltage : 5 V

• Supply voltage resistors : ± 5 V

• Maximum current resistance : 4.4 m

• Power dissipation : 10 mW

• Resistance : 100 k

• Resistance accuracy : 20%.

X9C104 Digital Potentiometer Module Pins

• VCC - 5V supply

• INC - changes the number of resistors in series, corresponding to variable terminal mechanical potentiometer. INC fronts negative terminal detects signals. To increment or decrement must alternate signal INC (toggle) direction of the terminal variable is given by U / D;

• U / D - control the direction of travel of the terminal variable (Up / Down)

• RH / RL - equivalent terminals are fixed terminals of a mechanical potentiometer. If potentiometer X9C104 between them will be a constant resistance of 100 delivery. If you need another order of magnitude for this resistance potentiometer can use another family X9C as 102, 103 or 503;

• RW - equivalent terminal variable terminal mechanical potentiometer;

• CS - chip select - to activate / deactivate the module;

X9C104 Digital Potentiometer Module Application

• This module has varied applications, can be used as resistive divider, variable resistance, these are used in different schemes with operational amplifiers or other analog circuits.

• These digital potentiometers are used in the industrial field. For example, analog signals generated by various sensors have to be calibrated using Wheatstone bridges made up of variable resistors. Using digital potentiometers and microcontrollers, signal self calibration systems can be implemented. You can use the X9C104 module to build a software controlled voltage source or a variable amplifier amplifier controlled by the Arduino plate.
