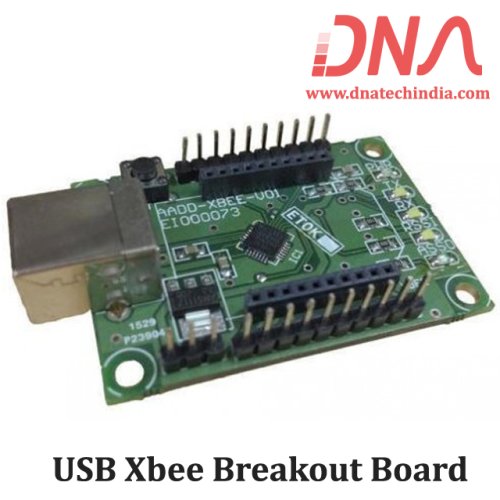

USB Xbee Breakout Board

ZigBEE (XBEE) USB EXPLORER Board

This is a simple to use, USB to serial base unit for the Xbee from DIgikey. This unit works with all ZigBee modules including the Series 1 and Series 2 it even works with standard as well as Xbee Pro modules. ZigBee USB Explorer has onboard 5 volt to 3.3 volt regulator as and takes care of 3.3 Volts required by Xbee.

This module also has LED indicators for Power, RSSI, Din & Dout. This module is a basic breakout board for Zigbee module for interfacing to PC via USB.Using this Breakout board you can even program the Xbee module using the XCTU software.

We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.

Features of Zig-BEE (XBEE) USB Breakout Board

• Compatible with all ZigBee modules (Series 1 and Series 2.5, standard and Pro)

• Built in 3V3 Voltage regulator

• Onboard 3V3 <->5V level converter (easy to interface 5V Devices)

• Status LEDs ( RX,TX,RSSI,Power)

• Zig Bee Pins available at 2.54 mm berg strip

Applications Of ZigBEE (XBEE) USB EXPLORER Module

• User can use this interfacing board to make communication between following devices through ZigBee wirelessly

• PC to PC (Desktop/Laptop)

• PC to Mechanical assembly / Robot

• PC to Embedded / Micro controller Circuit

Specifications Of ZigBEE (X BEE) EXPLORER USB CP2102 BASED

• Power supply : 5 Volt DC (only from USB)

• Temperature Range : 0°C to +70 °C

• USB to serial IC used : CP2102

Related Link

• CP2102 Driver Installation

NOTE : USB A to B Cable is required for this Module. It is not provided in this kit. You will have to buy the cable.
