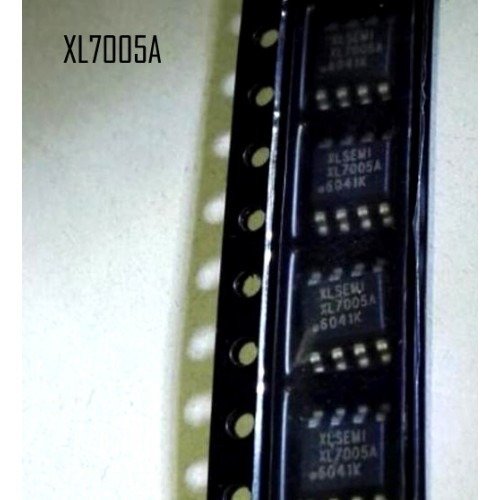

XL7005A DC to DC step Down IC

XL7005A is a 150KHz fixed frequency PWM buck (step down) DC to DC converter IC.

XL7005A DC to DC buck converter IC is capable of driving a 0.4 Ampere load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.
The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. When output short protection function happens, the operation frequency will be reduced from 150KHz to 45KHz. An internal compensation block is built in to minimize external component count.

Features of XL7005A DC to DC Converter IC

• Wide 5 Volts to 80 Volts Operation Voltage

• Output Adjustable from 1.25 Volts to 20 Volts

• Maximum Duty Cycle 100%

• Minimum Drop Out 1 Volts

• Fixed 150KHz Switching Frequency

• Maximum 0.4 Ampere Output Current

• Recommend output power less than 5 Watts

• Internal Optimize HV Power Transistor

• High efficiency up to 85%

• Excellent line and load regulation

• TTL shutdown capability

• Built in thermal shutdown function

• Built in output short Protection Function

• Built in current limit function

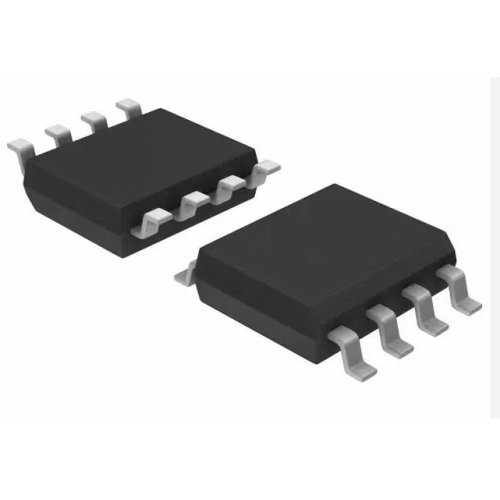

• SOP8-EP (Exposed PAD) package

Applications of XL7005A DC to DC Step Down IC

• Ebike Controller Power Supply

• Telecom / Networking Equipment
