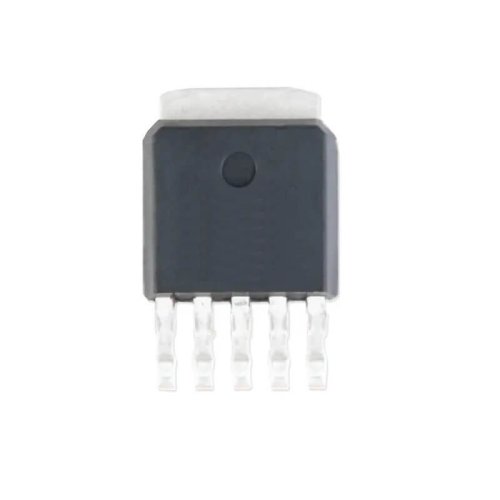

XL6005-XL6005E1-TO252-Step-Up DC Power Converter SMD IC

XL6005-XL6005E1-TO252-Step-Up DC Power Converter SMD IC

The XL6005 regulator is fixed frequency PWM Boost (step-up) LED constant current driver, capable of driving Series 1W/3W/5W LED units with excellent line and load regulation. The regulator is simple to use because it includes internal frequency compensation and a fixed-frequency oscillator so that it requires a minimum number of external components to work. The XL6005 could directly drive 11 Series 1W LED units at VIN>12V. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 95%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• EN PIN TTL shutdown capability & With PWM Dimming Function

• Wide 3.6V to 32V Input Voltage Range

• 0.22V FB adjustable LED drive current

• Directly drive 11 Series 1W LED at VIN>=12V

• Built in Soft-Start Function

• Built in Frequency Compensation

• Built in Thermal Shutdown Function

• Built in Current Limit Function

• Fixed 180KHz Switching Frequency

• Max. 4A Switching Current Capability

• Excellent line and load regulation

• Internal Optimize Power MOSFET

• Available in TO252-5L package

• Up to 94% efficiency
