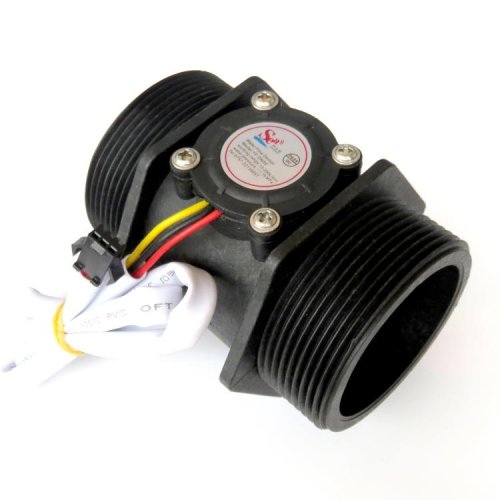

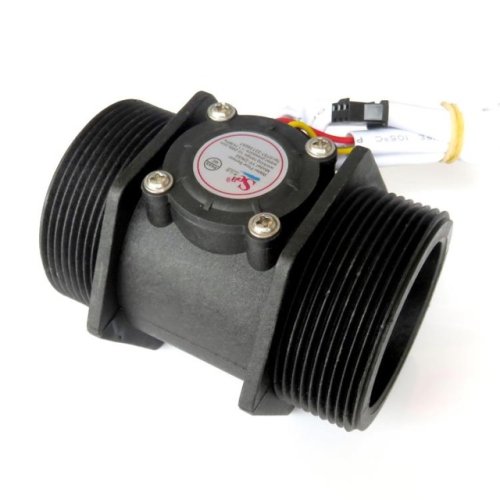

WATER FLOW SENSOR YF-DN50

YF-DN50 2" Water flow sensor for 10-200 Liter/Min

YF-DN50 is a large 2 inch diameter Water Flow meter Sensor that can be used to measure flow rate from 10 - 200 Liter/min

Features Of WATER FLOW SENSOR YF-DN50

• Working voltage range : DC 5-18 V

• Waterproof, Heat resistance, pressure resistance, cold resistance, Easy to install.

• Flow range : 10-200 Liter per min

• Sensor : Hall effect

• Maximum current : 15 mA (5 volt DC)

• Operating Temp : up to 80C,Operating humidity:35%-90%RH

• Allow compression : Water pressure 1.75 Mpa below

• Insulation resistance : >100M OHM


• Storage Temperature : -25-80C

• Storage humidity : 25%-95%RH

• Output Waveform : Square Wave,output pulse signal.
